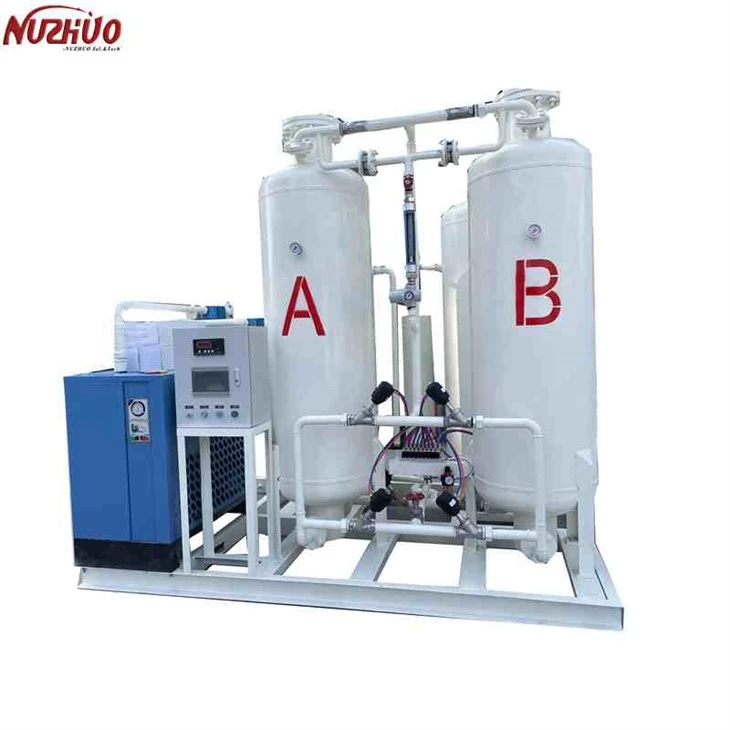

Oxigen Generator Plant Loj muaj peev xwm Psa Kho Mob Oxygen Plant Tsim los ntawm Nuzhuo
Nqe lus piav qhia ntawm Oxigen Generator Cog :
|
Specification |
Cov zis (Nm3 / h) |
Kev siv roj (Nm3 / h) |
Cua ntxuav qhov system |
|
NCO-5 |
5 |
1.3 |
CJ-2 |
|
NCO-10 |
10 |
2.5 |
CJ-3 |
|
NCO-20 |
20 |
5 |
CJ-6 |
|
NCO-40 |
40 |
9.5 |
CJ-10 |
|
NCO-60 |
60 |
14 |
CJ-20 |
|
NCO-80 |
80 |
19 |
CJ-20 |
|
NCO-100 |
100 |
22 |
CJ-30 |
|
NCO-150 |
150 |
32 |
CJ-40 |
|
NCO-200 |
200 |
46 |
CJ-50 |
Cua muaj 21% oxygen, 78% nitrogen, 0.9% argon thiab 0.1% lwm cov pa roj. Oxygen generators cais cov pa oxygen los ntawm huab cua compressed los ntawm cov txheej txheem tshwj xeeb hu ua siab viav vias adsorption. (PSA).
Lub siab viav vias adsorption txheej txheem, uas tsim cov pa oxygen -enriched gas los ntawm huab cua puag ncig, siv lub peev xwm ntawm hluavtaws zeolite molecular sieves kom nqus tau cov nitrogen feem ntau. Oxygen yog tsim raws li ib yam khoom thaum nitrogen yog concentrated nyob rau hauv lub zeolite lub pore system.
Lub tshuab hluav taws xob oxygen siv ob lub nkoj uas muaj zeolite molecular sieves ua adsorbents. Molecular sieves xaiv adsorb nitrogen raws li cov cua compressed dhau los ntawm ib qho ntawm cov adsorbers. Qhov no tom qab ntawd tso cai rau cov pa oxygen ntxiv mus dhau lub adsorber thiab tawm raws li cov khoom siv roj. Thaum lub adsorber tau saturated nrog nitrogen, lub inlet gas ntws tau hloov mus rau qhov thib ob adsorber. Thawj adsorber yog regenerated los ntawm desorbing nitrogen ntawm txo siab thiab purging nrog ib co khoom oxygen. Lub voj voog yog rov ua dua, nrog lub siab oscillating ntawm qib siab dua rau adsorption (ntau lawm) thiab qis dua rau desorption (regeneration).
|
Product Compariso |
||
|
Lub npe |
Nuzhuo Oxygen generator |
Lwm yam Oxygen generator |
|
Purity |
93+/-3% |
90+/-3% |
|
Warranty |
18 hli |
12 hli |
|
Kev tu |
Tsawg (peb muab tag nrho cov khoom seem yam tsis muaj txiaj ntsig) |
Nws yuav yog li ntawm 2. 5lub sijhawm ntawm tus nqi |
|
Nqe |
Tus nqi qis |
Tus nqi siab |
|
1, Nitric oxide thiab dew point saib xyuas 2, Ntau-theem pom, European thiab US Pharmacopoeia kho mob qib oxygen 3, Cov chaw tsim khoom muajISO 13485Kev tswj xyuas cov ntawv pov thawj zoo rau cov tshuab hluav taws xob oxygen 4, PSA oxygen cog, tsis tso tsheb hlau luam: stainless hlau (yeem) 5, lub sijhawm xa khoom sai |
||
Nta ntawm Nuzhuo PSA Oxygen Generator:
Cov cuab yeej siv adsorbent zoo heev kom nws muaj zog dua -txuag.
Cov kev pab cuam tshwj xeeb- tswj valve, compact hauv cov qauv, me me hauv pem teb cheeb tsam, txaus siab rau qhov muag, tsis ua hauj lwm tom qab 1million swithovers.
Cov cuab yeej yog qhov yooj yim hauv cov txheej txheem, compact hauv cov qauv, me me hauv pem teb thiab tsawg kawg hauv qhov yuav tsum tau muaj. Tshwj xeeb patented compacting qauv, nruab nrog tsis siv neeg them nyiaj thaum
molecular sieve yuav xoob, uas txuas lub neej ntawm sieve mus txog 10 xyoo.
Cov cuab yeej txaus siab rau kev ua haujlwm zoo heev thiab kev ntseeg tau. Nws boasts zoo heev kev nyab xeeb thaum ua hauj lwm nyob rau hauv ib txwm kub thiab siab.Qhov kev pab cuam lub neej ntawm molecular sieve yog siv thiab tswj ib txwm yuav ncav cuag 10 xyoo.
Lub adsorber yog qhov tshwj xeeb hauv kev tsim kho.Kev faib tawm ntawm huab cua txaus yog sib xws, yog li kev siv tag nrho tuaj yeem ua los ntawm molecular sieve.
Daim ntawv thov:
FAQ:
1, Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
--Peb yog cov kws tshaj lij oxygen generator Hoobkas!
2.Kuv tuaj yeem tau txais koj daim ntawv teev nqi li cas?
--Xa lus nug rau peb thiab qhia peb tias koj xav tau peb cov pricelist, peb cov muag khoom yuav teb koj li ntawm 12 teev nrog pricelist.
3, Kuv puas tuaj yeem tau txais cov qauv los kuaj xyuas qhov zoo ua ntej kev txiav txim loj?
--Koj tuaj yeem tuaj xyuas peb lub Hoobkas ua ntej koj xaj peb cov khoom.
4, Puas muaj kev lees paub rau koj cov khoom?
--Peb lub tuam txhab kab lis kev cai yog "Zoo yog peb kab lis kev cai!"Tag nrho peb cov khoom nrog 12 lub hlis DAWB GUARANTEE, tsis tas yuav txhawj xeeb txog qhov kev pab cuam tom qab muag, peb yuav nyob ntawm no los txhawb koj lub lag luam!
5, Puas muaj ntawv pov thawj rau koj cov khoom?
--Peb cov khoom tuaj yeem dhau ISO 9001 thiab lwm yam ntawv pov thawj, yog li lawv tuaj yeem muag mus rau thoob ntiaj teb kom nyab xeeb!
6, Yuav ua li cas txog lub sijhawm khoom xa tuaj?
--Feem ntau rau 15 ~ 30 hnub.
7, Koj puas txhawb OEM / ODM kev pabcuam?
--Yog, peb txhawb nqa, peb tau ntsib R & D pab neeg, yog li txais tos muab OEM / ODM xaj rau peb.
8, Thaum kawg, txog cov nqe lus them nqi, txoj kev yooj yim thiab nyab xeeb rau peb cov neeg yuav khoom?
--Peb muaj paypal, Alibaba them, T / T, kev xaiv cov nqe lus them nqi, ua lag luam nrog peb, koj cov nyiaj yuav nyob rau hauv kev nyab xeeb, koj lub lag luam yuav nyob nyab xeeb!
Cim npe nrov: tsev kho mob oxygen psa nroj tsuag, Tuam Tshoj tsev kho mob oxygen psa nroj tsuag manufacturers, hoobkas
